BOS

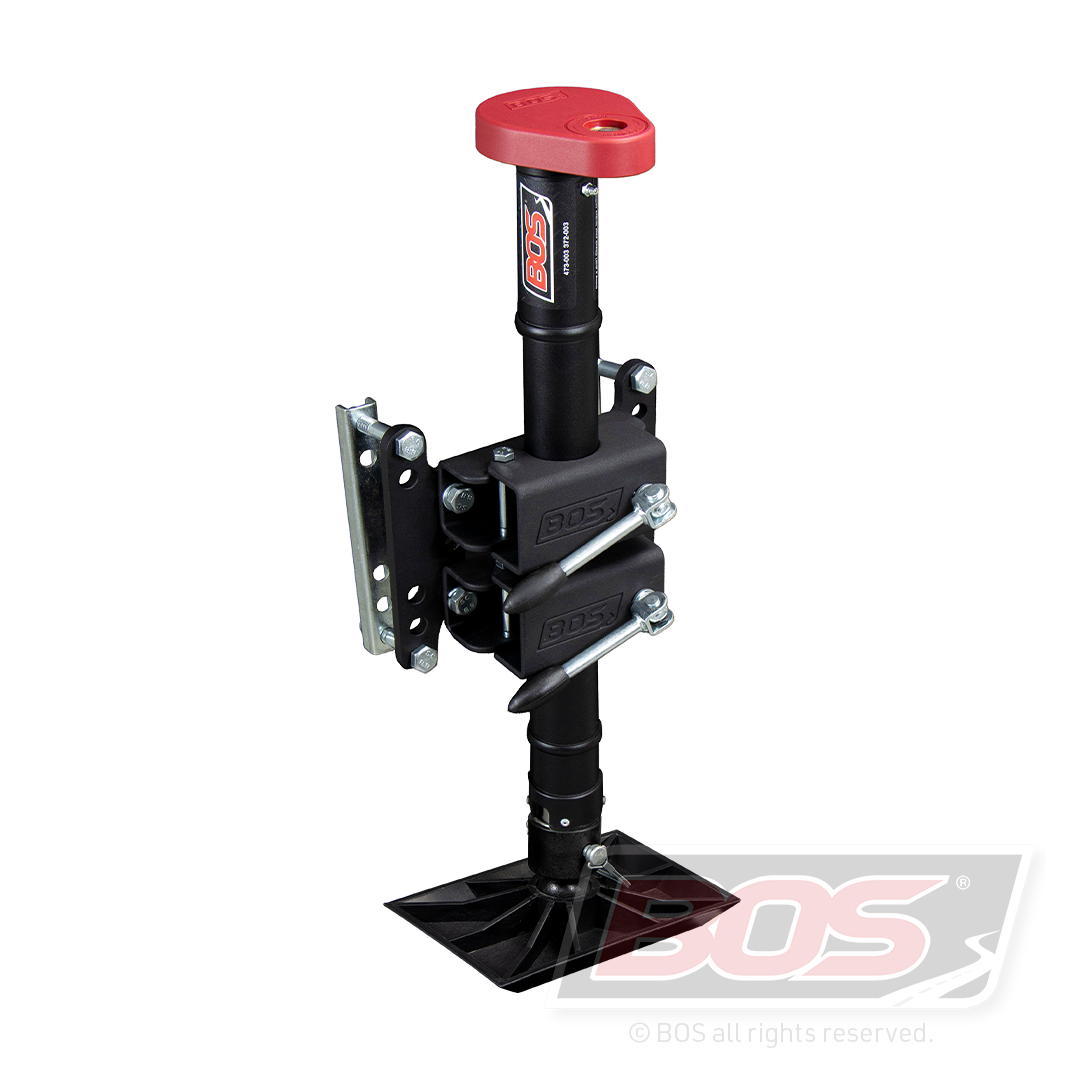

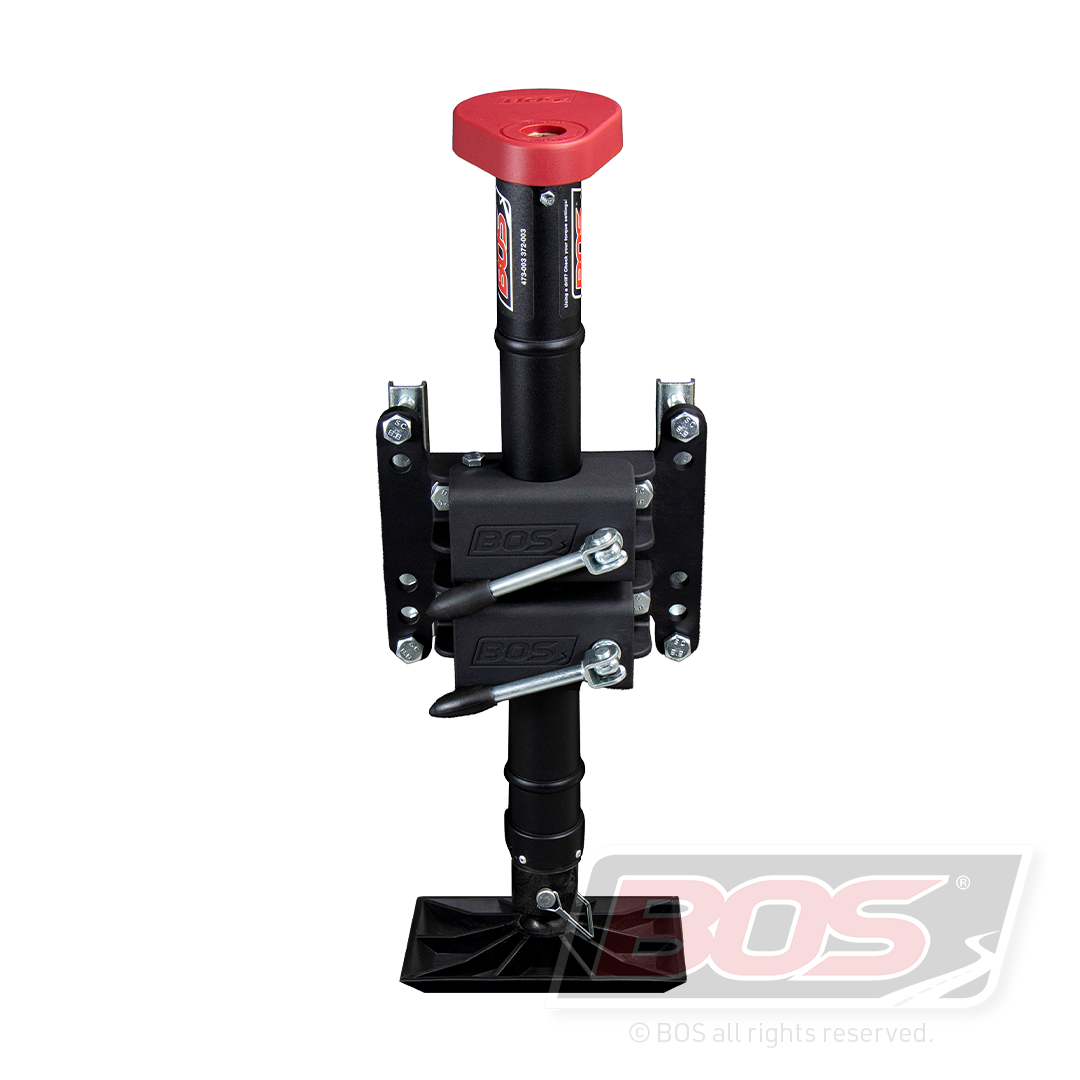

BOS 3 RIB 50MM JOCKEY & BASE PLATE 50MM DOUBLE CLAMP KIT (473-030)
In stock

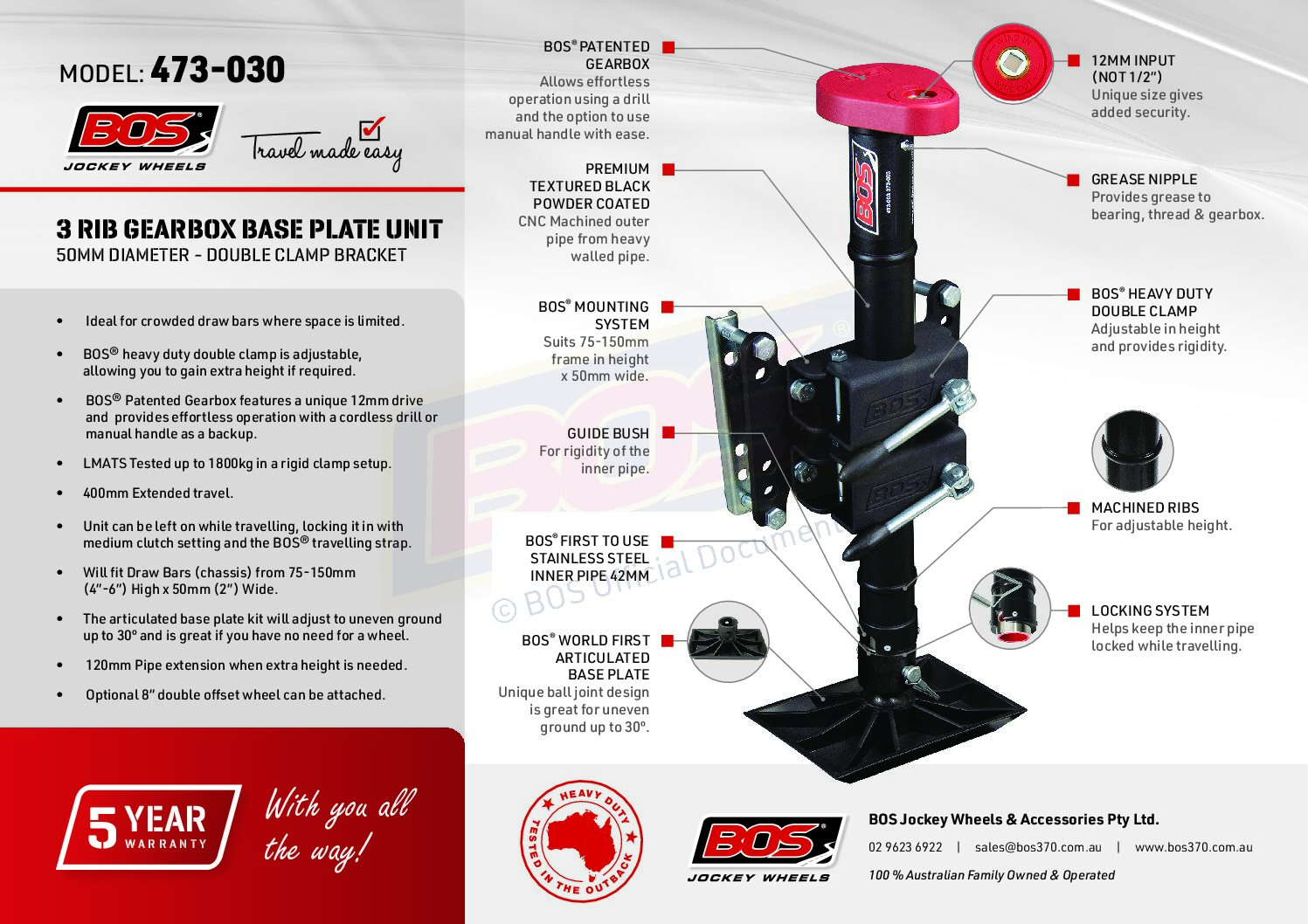

- Ideal for crowded draw bars where space is limited.
- BOS® heavy duty double clamp is adjustable, allowing you to gain extra height if required.
- Patented BOS® Gearbox features a unique 12mm drive set for added security and provides effortless operation with a cordless drill or manual handle as a backup.
- LMATS Tested up to 1800kg in a rigid clamp setup.

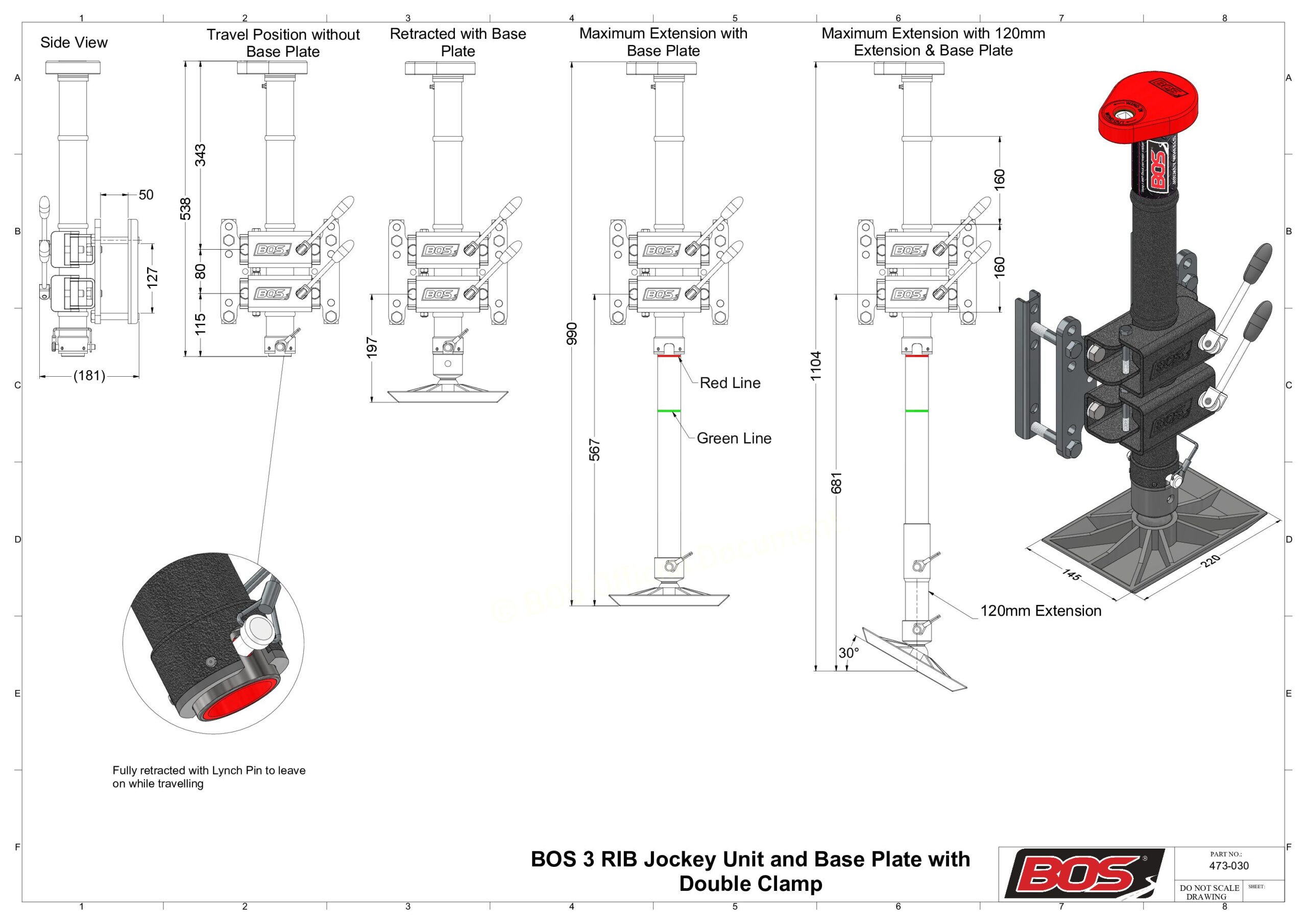

- 400mm Extended travel.
- Unit can be left on while traveling, locking it in with medium clutch setting and the BOS® traveling strap.
- Will fit Draw Bars (chassis) from 75-150mm (4”-6”) High x 50mm (2’’) Wide.
- The articulated base plate kit will adjust to uneven ground up to 30º and is great if you have no need for a wheel.
- 120mm Pipe extension when extra height is needed.
- Machines Ribs for adjustable height
- BOS® First to Use Stainless Steel inner pipe 42mm
- BOS® World First Articulated Base Plate
- 12mm Input (NOT 1/2″) Unique size gives added security
- Grease Nipple provides grease to bearing, thread & gearbox
- Premium textured Black Powder Coated CNC machined outer pipe from heavy walled pipe
- Guide Bush for rigidity of the inner pipe
- Locking System helps keep the inner pipe locked while travelling
- Complete KIT including Mounting System AND Heavy Duty Double Clamp
- 473-003 50mm BOS 3 Rib Jockey Wheel Kit (Gearbox)
- 10-090 50mm Double Clamp
- 010-033 75-150mm Mounting Kit U-Bracket & Bolts
- 010-062 Articulated Base Plate (HDFR) Nylon
- 020-003 Manual Handle 12mm (HDFR) Nylon
- 020-007 BOS 12mm Drill Drive Attachment
- 020-018 2 x Quick Release Pin
- 020-026 120mm Stainless Steel Extension
- 020-037 Jockey Weather Cover
- 370 Strap – Travel Strap
- 010-035 Stubby Can Cooler
- 010-036 Stubby Bottle Cooler
