BOS 3 LUG 60MM BLACK OPS SWING AWAY (GEARBOX) AND BASE PLATE (681-003)

$669.00 Original price was: $669.00.$640.00Current price is: $640.00.

In stock

  • Ideal for camper and work trailers that need a strong swing away unit.
  • The 60mmØ Jockey unit is adjustable in swing away bracket to gain extra height if required.
  • Patented BOS® Gearbox features a unique 12mm drive set for added security and provides effortless operation with a cordless drill or manual handle as a backup.
  • Load Capacity of up to 500kg.
  • 355mm Extended travel.
  • The articulated base plate kit will adjust to uneven ground up to 30º and is great if you have no need for a wheel.
  • Unique patented BOS® PUSH/PULL Handle makes release & rotation easy.
  • Will fit Draw Bars (chassis) from 100-150mm (4”-6”) High x 50mm (2’’) Wide.
  • 120mm Pipe extension when extra height is needed.

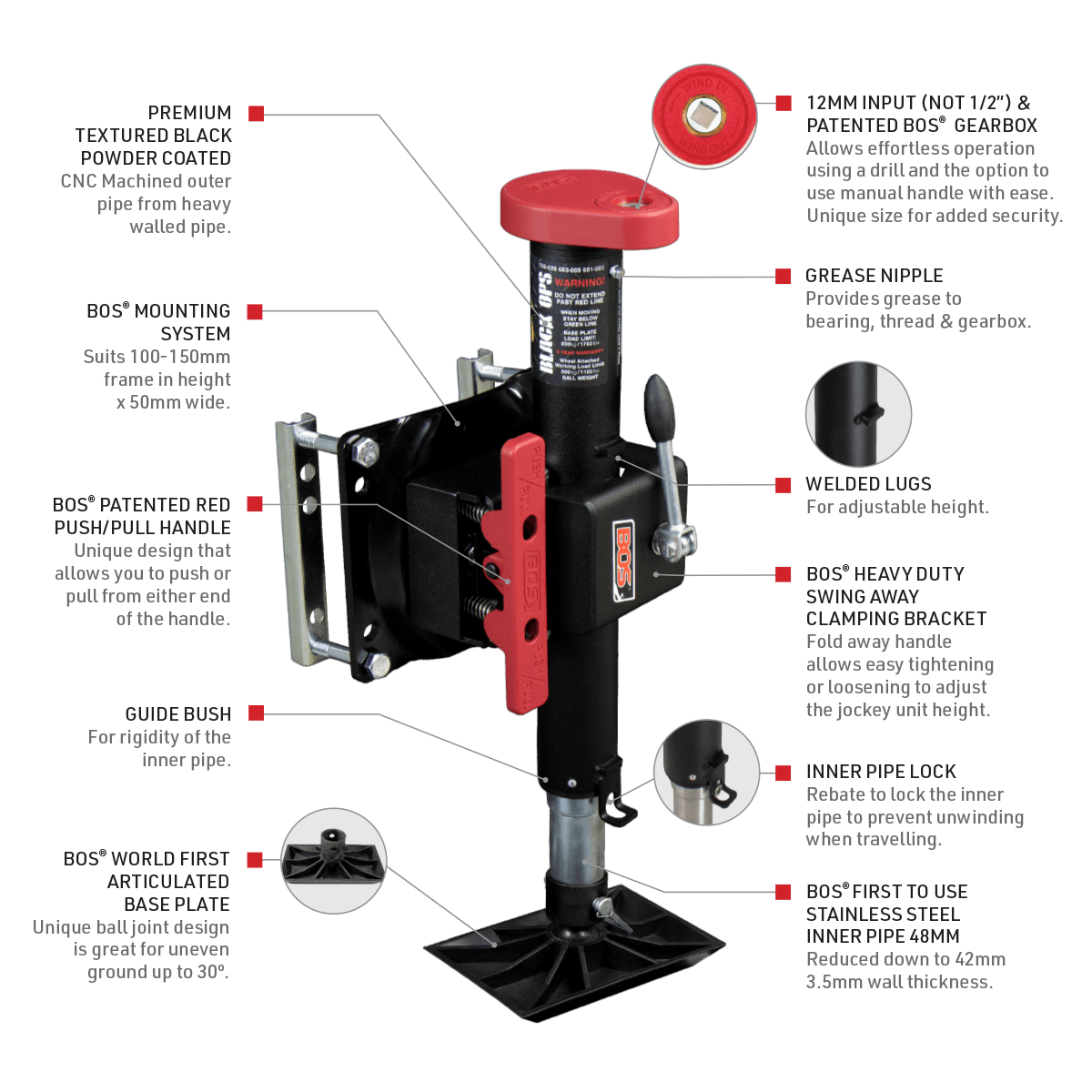

  • PATENTED BOS® GEARBOX Allows effortless operation using a drill and the option to use manual handle with ease.
  • 12MM INPUT (NOT 1/2”) Unique size for added security.
  • WELDED LUGS For adjustable height.
  • BOS® FIRST TO USE STAINLESS STEEL INNER PIPE 48MM Reduced down to 42mm 3.5mm wall thickness.
  • BOS® WORLD FIRST ARTICULATED BASE PLATE Unique ball joint design is great for uneven ground up to 30º.
  • GREASE NIPPLE Provides grease to bearing, thread & gearbox.
  • PREMIUM TEXTURED BLACK POWDER COATED CNC Machined outer pipe from heavy walled pipe.
  • GUIDE BUSH For rigidity of the inner pipe.
  • INNER PIPE LOCK Rebate to lock the inner pipe to prevent unwinding when travelling.
  • BOS® MOUNTING SYSTEM Suits 100-150mm frame in height x 50mm wide.
  • BOS® PATENTED RED PUSH/PULL HANDLE Unique design that allows you to push or pull from either end of the handle.
  • BOS® HEAVY DUTY SWING AWAY CLAMPING BRACKET Fold away handle allows easy tightening or loosening to adjust the jockey height.
KIT INCLUDES:
  • 681-003 60mm 3 Lug Black Ops Jockey Wheel (Gearbox)
  • 350-001 Swing Away Bracket 60mm
  • 010-062 Articulated Base Plate (HDFR) Nylon
  • 020-003 Manual Handle 12mm (HDFR) Nylon
  • 020-007 BOS 12mm Drill Drive Attachment
  • 020-018 2 x Quick Release Pin
  • 020-026 120mm Stainless Steel Extension
  • 020-037 Jockey Weather Cover
  • 370 Strap – Travel Strap
  • 010-035 Stubby Can Cooler
  • 010-036 Stubby Bottle Cooler
